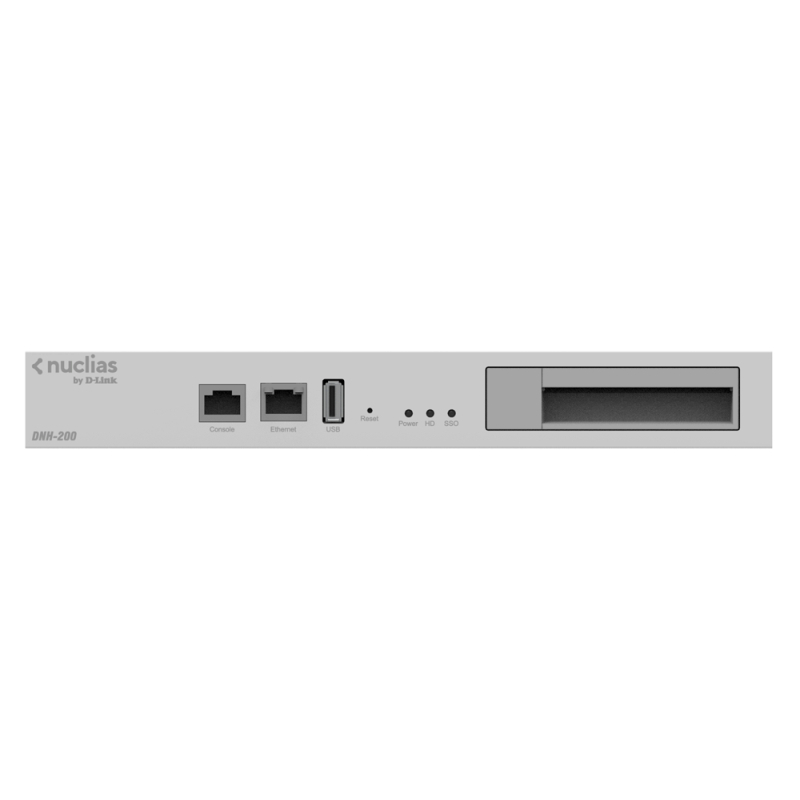

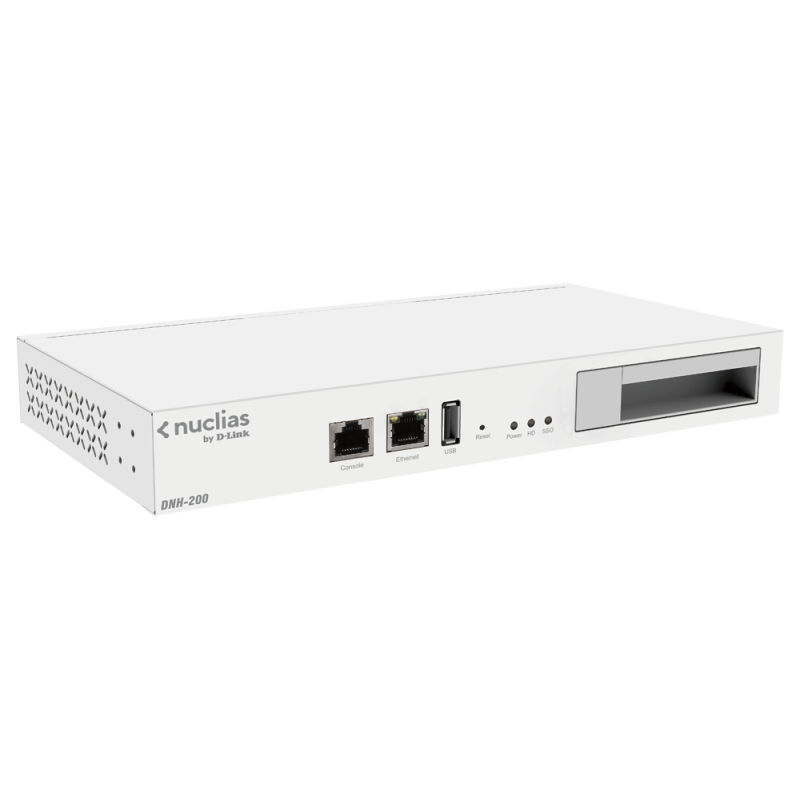

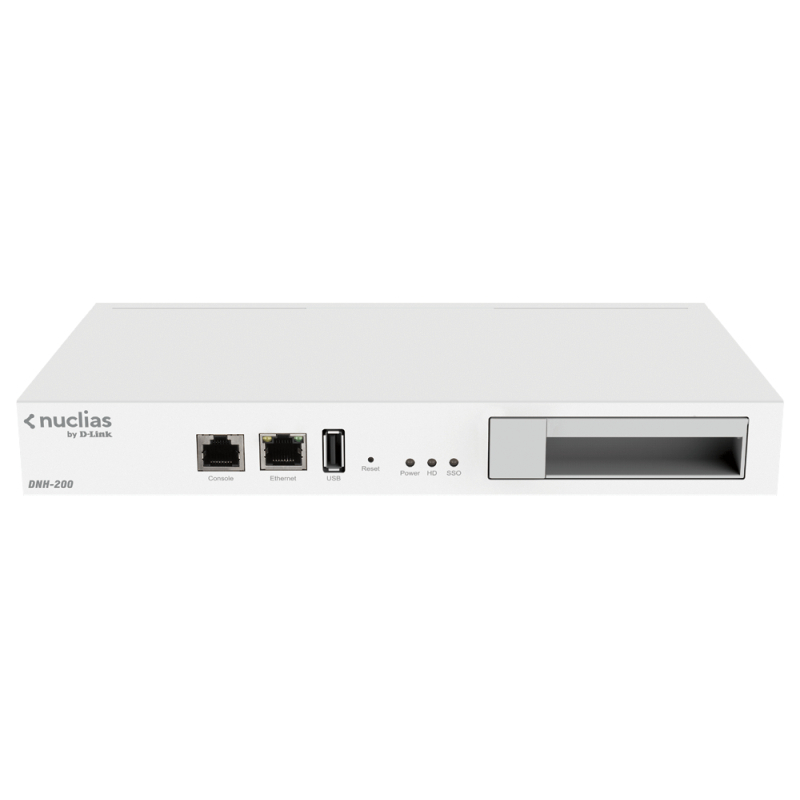

D-Link Nuclias Connect Hub

Description

Nuclias Connect Hub Plus, Hardware controller and NVR. Manages up to 20 cameras and up to 50 networking devices.

Specifications:

• Overwrite Recording: Auto recycling when disk storage is full
• Video Export: MP4
• System Time: Manual Input or sync with NTP server
• System Status: IP Camera and AP device status, System status, HDD status
• Network Service Protocols: IPv4/IPv6 dual stack, DHCP client, HTTPS server, NTP server/client, RTP/RTSP/RTCP, SMTP client, FTP client
• Size: 19-inch, 1U rack-mountable
• Ports: 1 x 10/100/1000 BASE-TX ethernet, 1 x RJ45 Console, 1 x USB 2.0
• LEDs: Power, HDD, SSO (Single Sign-On)
• Cooling: Fanless
• Dimensions: 270 x 140 x 35 mm
• Weight: 0.865 kg
• Power Input: 12V / 3A, external power adapter
• Max. Power Consumption: 19 W
• Operating Temperature: 0? to 40?C (32? to 104?F)
• Storage Temperature: -20? to 70?C (-4? to 158?F)
• Operating Humidity Maximum: 90% (non-condensing)
• Storage Humidity Maximum: 95% (non-condensing)
• Mean Time Between Failure (MTBF): >300,000 hrs
• EMI: FCC Class A, CE Class A, RCM, Safety LVD, RoHS, WEEE Directive

Features:

• Multi-Function Management for Network Devices and IP Cameras
• Supports H.264 and H.2651 D-Link IP Cameras
• Supports 4K Camera Resolutions
• Intuitive Interface
• Multi-Tenant & Role-Based Administration
• Inexpensive Hardware Controller
• Searchable Event Log and Change Log
• Traffic Reporting & Analytics
• Authentication via Customizable Captive Portal, 802.1X and RADIUS Server, POP3, LDAP
• Free-to-Download Management Software
• Remote Config. & Batch Config.
• Payment Gateway (PayPal) Integration and Front-Desk Ticket Management
