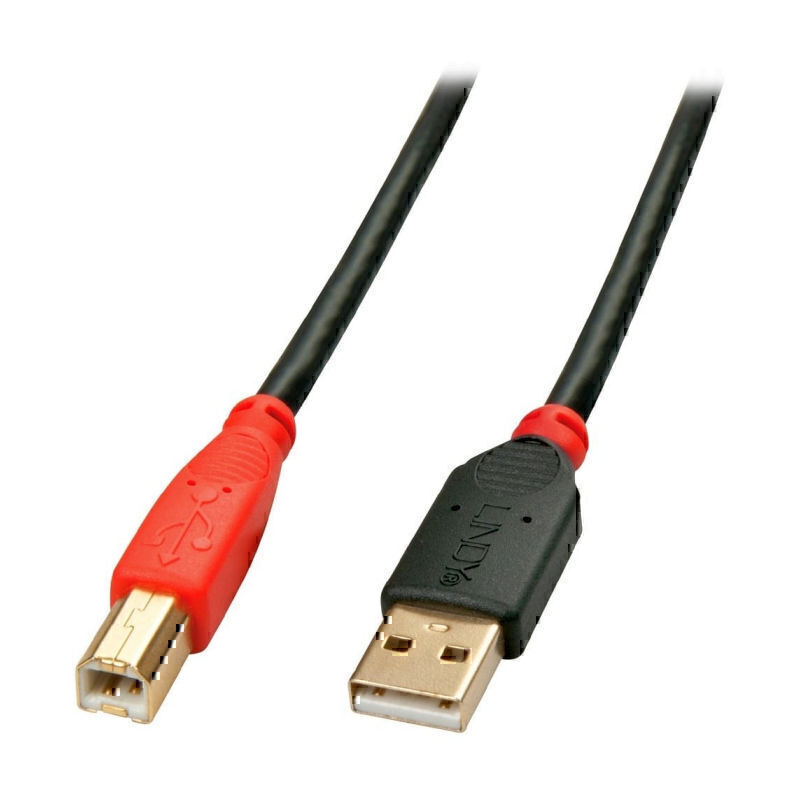

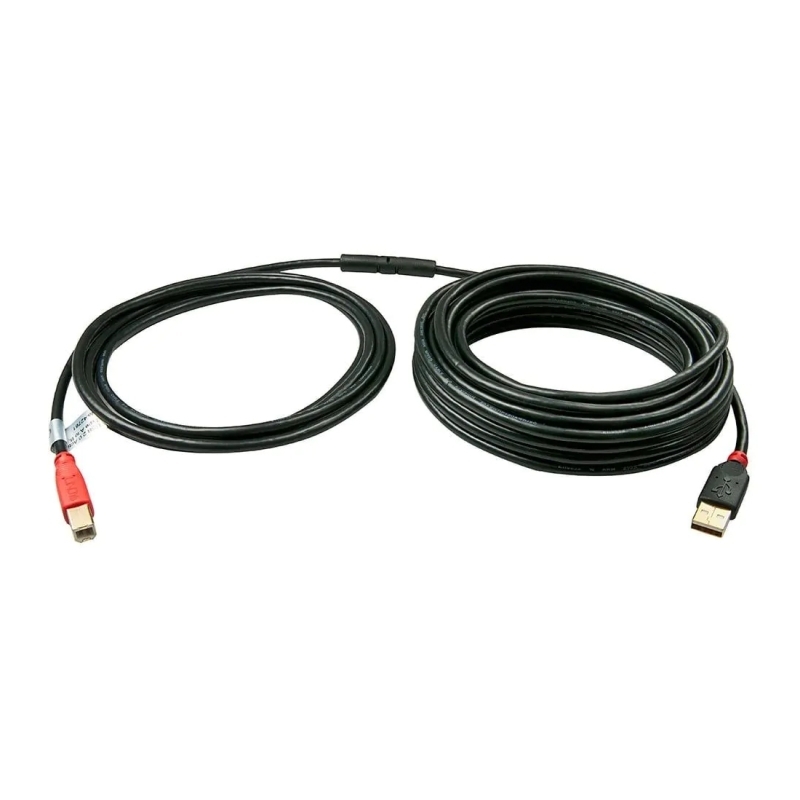

Lindy 15m USB2 A-B Cable Grey

Description

Plug and Play – no special software installation required. Connectors Type A USB Male to Type B USB Male. Ideal for direct device connection. 2 year warranty

Specifications:

• Connector A: USB Type A Male
• Connector B: USB Type B Male
• Housing Material: Plastic
• Connector Plating: Front: Gold / Back: Nickel
• Pin Construction: Brass
• Pin Plating: Gold Flash
• Dimensions: USB A Male: 14x41x6mm, USB B Male: 10x41x10mm, Repeater: 10mm (diameter), length: 52.5mm
• Length: 15m
• Standard: USB 2.0
• Colour: Black
• Type: Round
• Jacket Diameter: 5mm +/-0.15mm (0.2in +/- 0.01in)
• Jacket Material: Half matt PVC low toxic
• Conductor Material: Tinned Copper
• Conductor Gauge: 26/20AWG
• Shielding: AL Mylar and braid
• Supported Bandwidth: 480 Mbps
• Nominal Attenuation: (0.064 MHz, -0.08 dB), (0.256MHz, -0.11 dB), (0.512MHz, -0.13 dB), (0.772 MHz, -0.15 dB), (1 MHz, -0.2 dB), (4 MHz, -0.39 dB), (8 MHz, -0.57 dB), (12 MHz, -0.76 dB), (24 MHz, -0.95 dB), (48 MHz, -1.35dB), (96 MHz, -1.9 dB), (200 MHz, -3.2 dB), (400 MHz, -5.8 dB),
• Minimum Bend Radius: 26mm
• Operating Temperature: 0C – 50C
• Storage Temperature: -20C – 60C
• Transmission Medium: Twisted Pair
• Transmission Technology: USB 2.0
• Packaging Type: Polybag
• Weight: 0.372kg
• Warranty: 2
• Product Compliance: CE, FCC, RoHS & REACH

Features:

• 10m USB 2.0 Active Repeater Cable
• Supports transfer rates up to 480Mbps
• Ideal for direct device connection
• Plug & Play installation
• 2-year warranty
